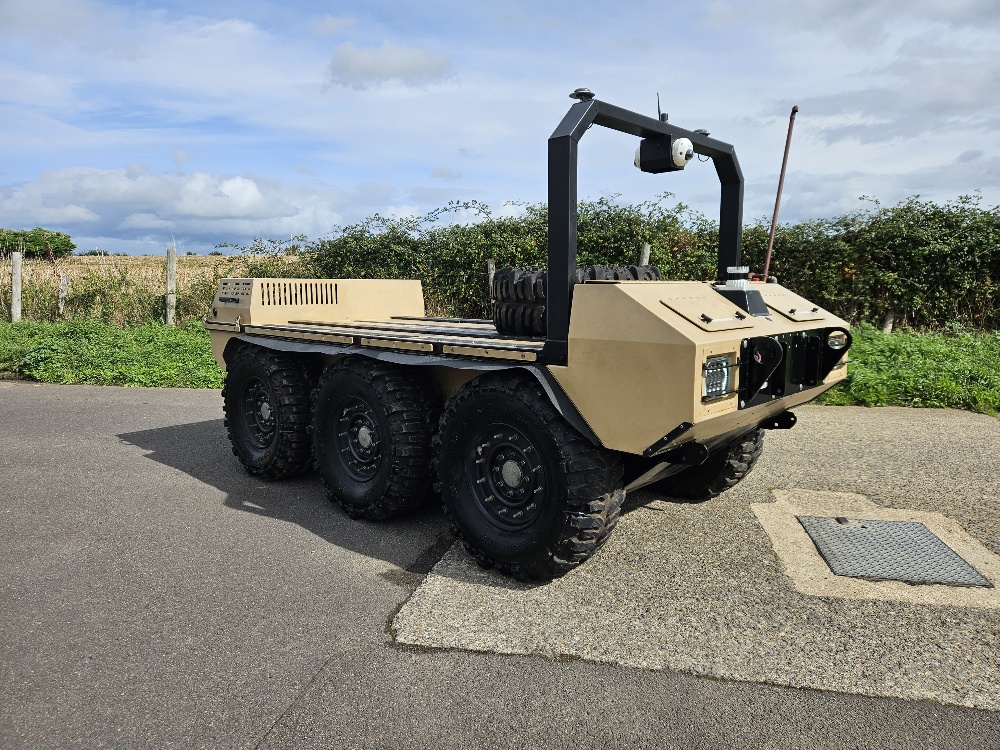

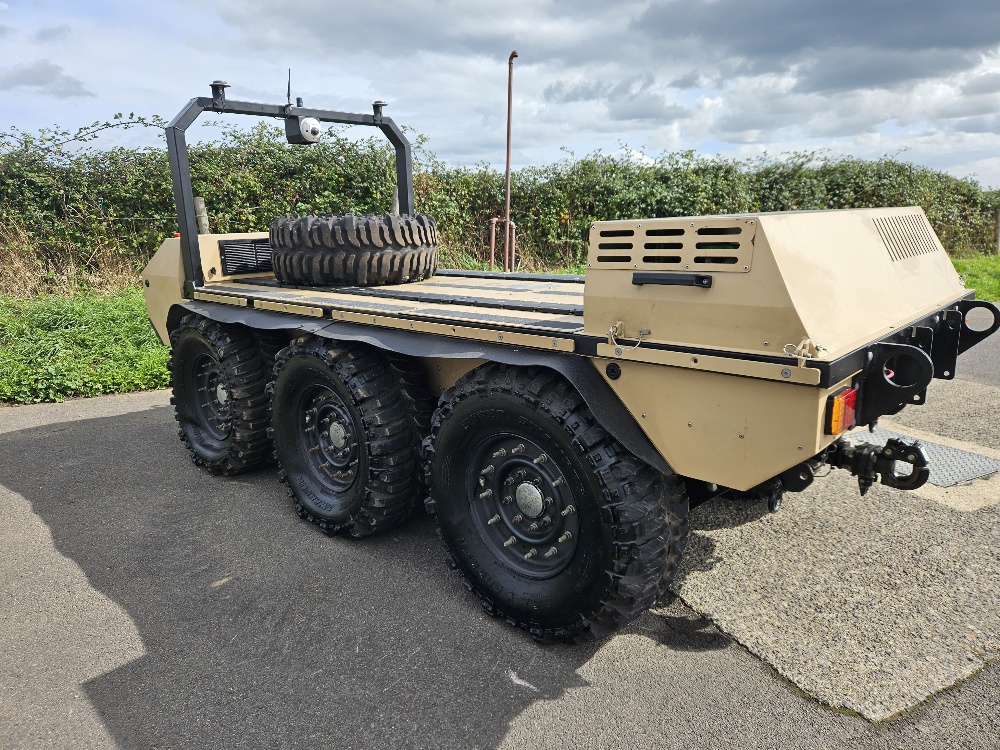

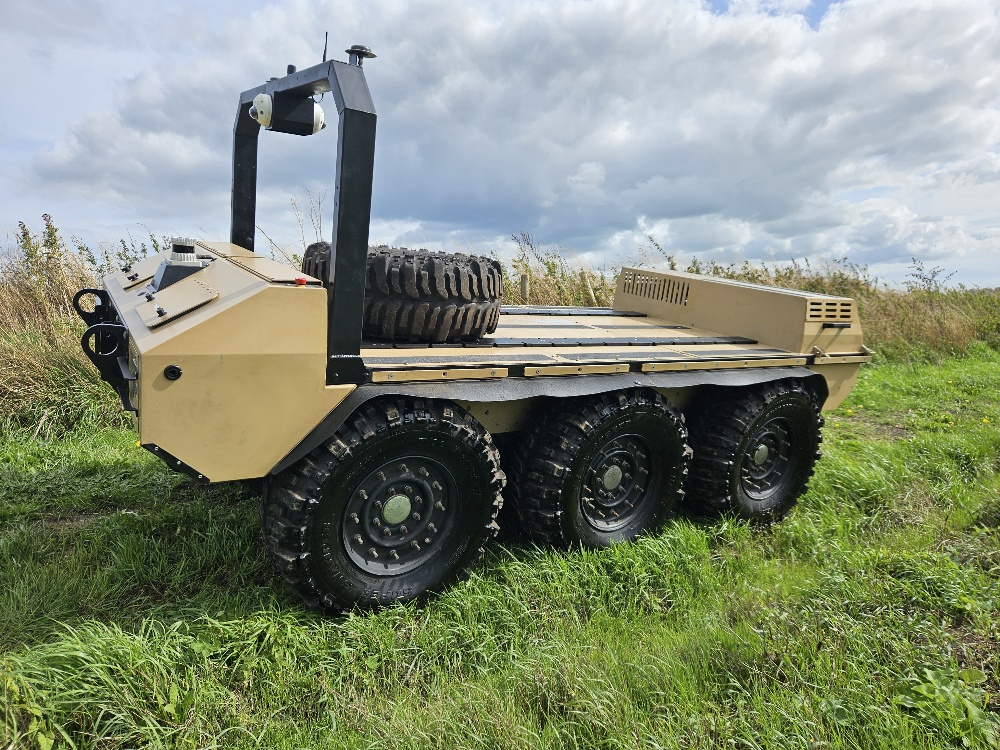

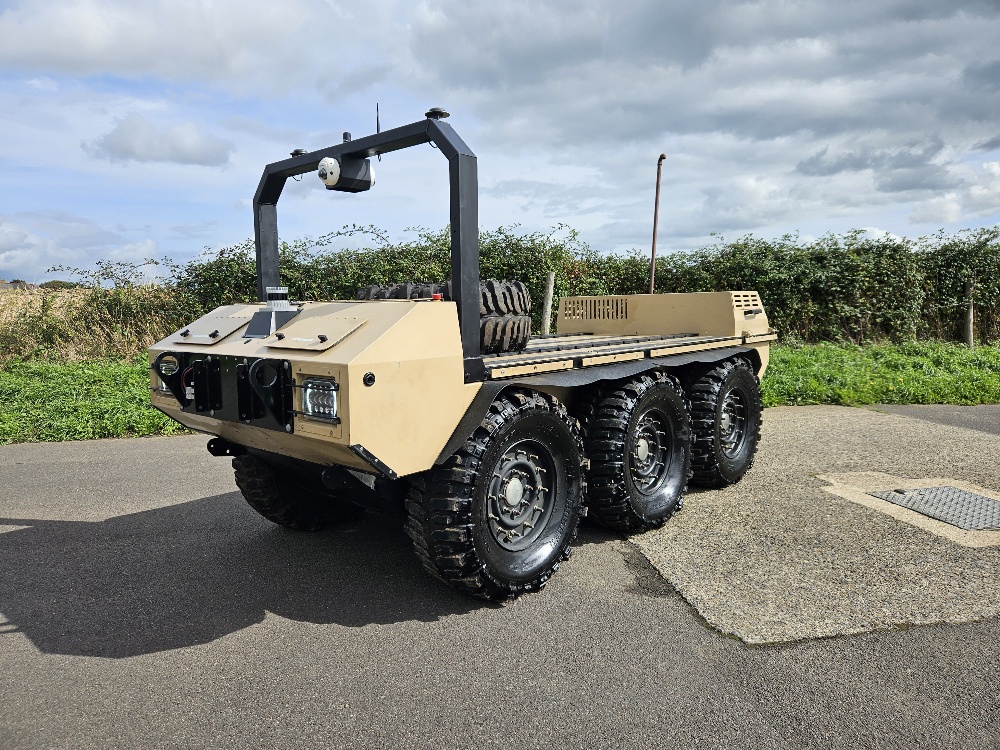

MK I RAPTOR 6X6 FULLY AUTONOMOUS MULTI TERRAIN VEHICLE PLATFORM

The electric drive 6X6 RAPTOR is a multi terrain, low acoustic with a low thermal signature. The RAPTOR 1 features an integrated diesel/JP8 high output generator producing 13 KW of DC power, with a range of 150 KM on a single tank of fuel.

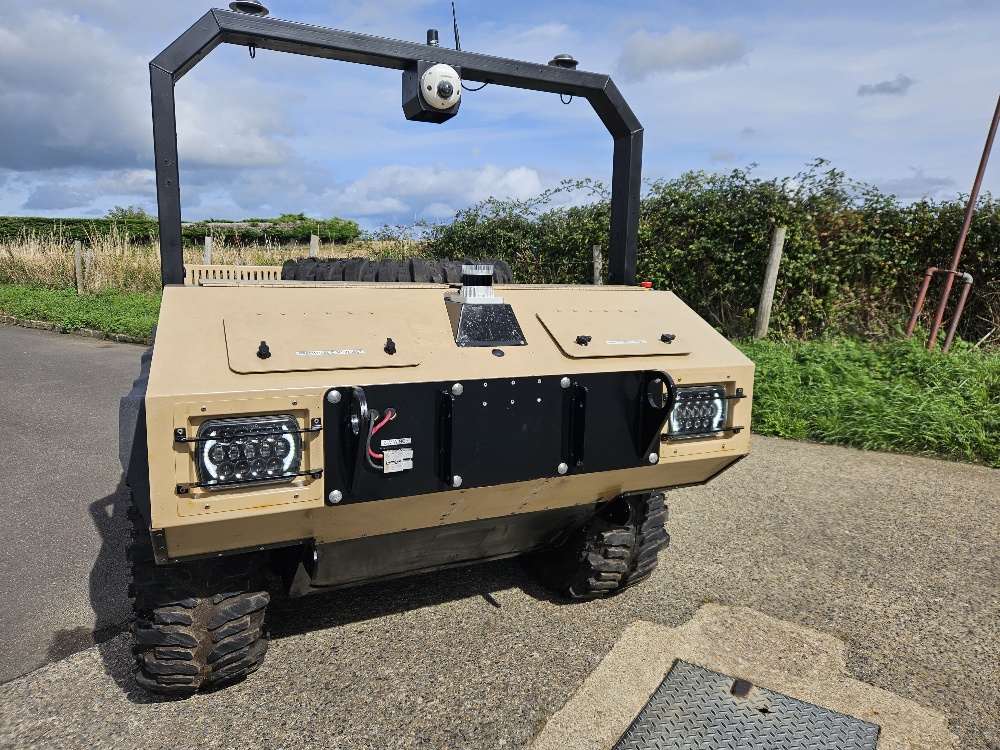

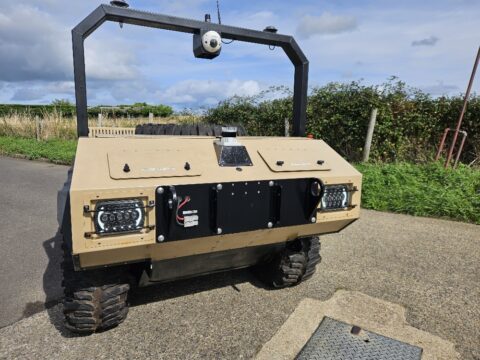

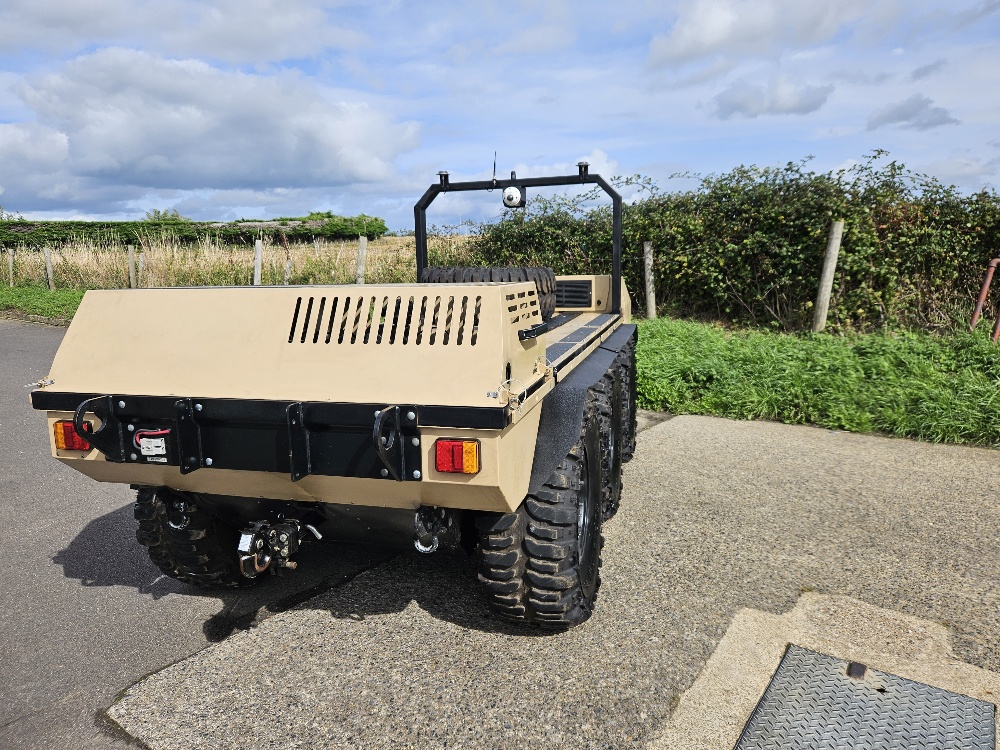

The RAPTOR is fully autonomous, with follow me, autonomous, tethered, RF and tablet modes, 1000 kgs payload capacity, fitted front and rear facing cameras, detachable NATO tow hitch, exportable DC power output, separate 3.8 kWh battery pack that allows for long periods of silent drive without the need to run the integrated generator.

TECHNICAL SPECIFICATIONS

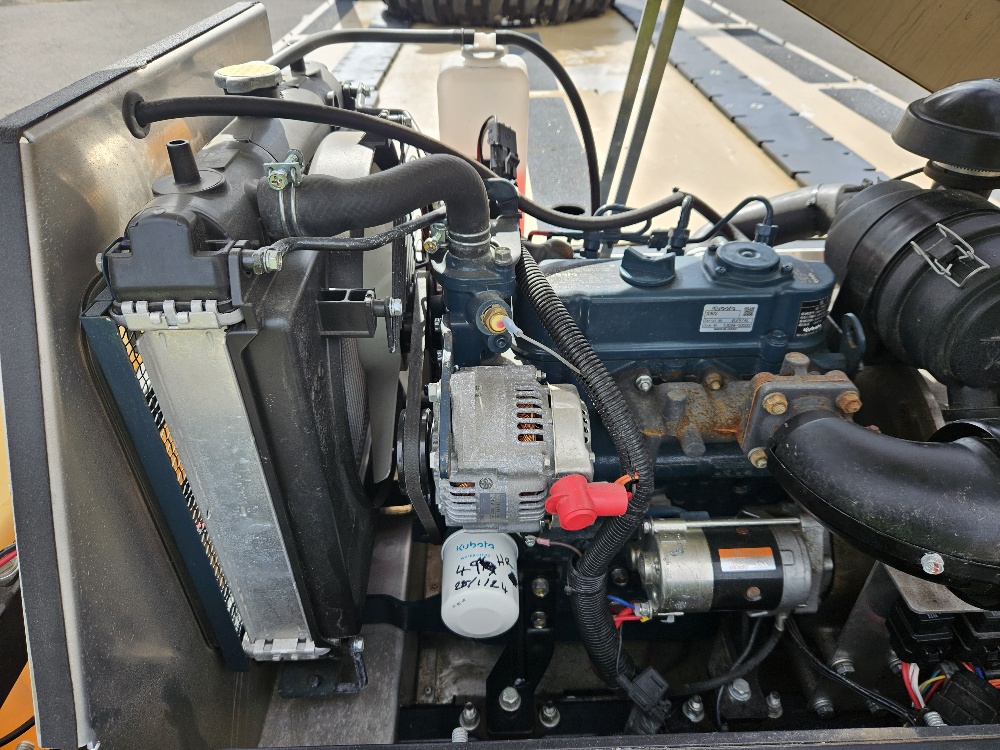

ENGINE : Kubota D902 Diesel, JP8 compatible. Top speed 35 Km/h, Top speed water 3 Km/h, Range Battery (silent mode): >20km Diesel > 150 km. Payload 1000 kg, towing capacity 2000 kg, GVW 2700 kg, curb weight 1700 kg

LENGTH : 3.65 M, WIDTH 1.63 M, HEIGHT 1.2 M

PAYLOAD DECK AREA:2.46M X 1.47M

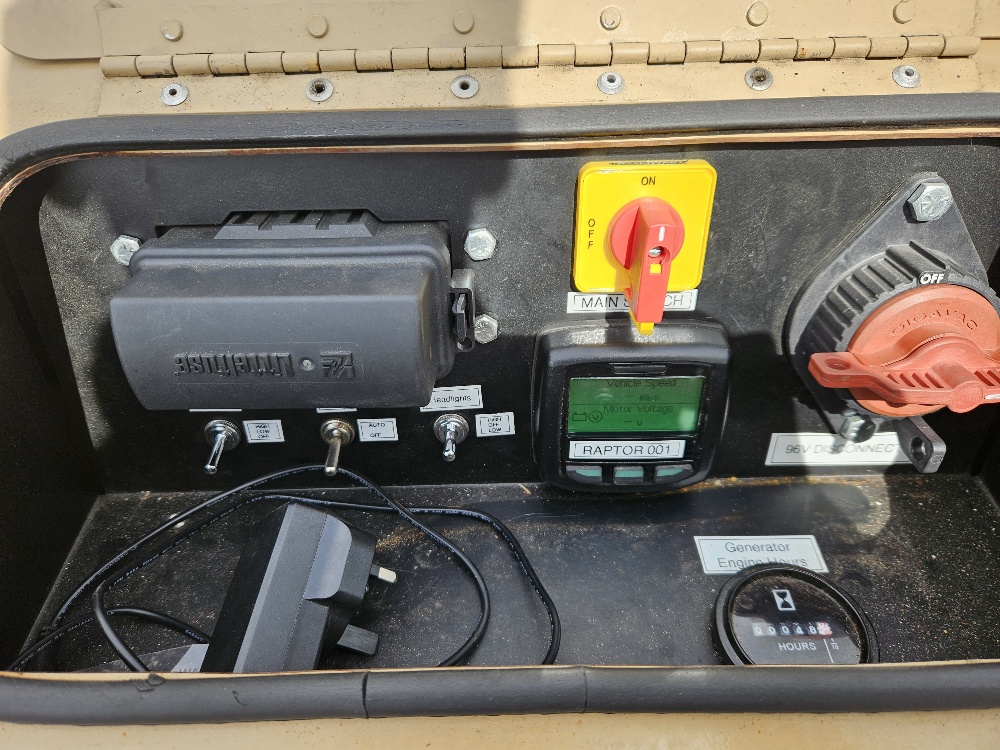

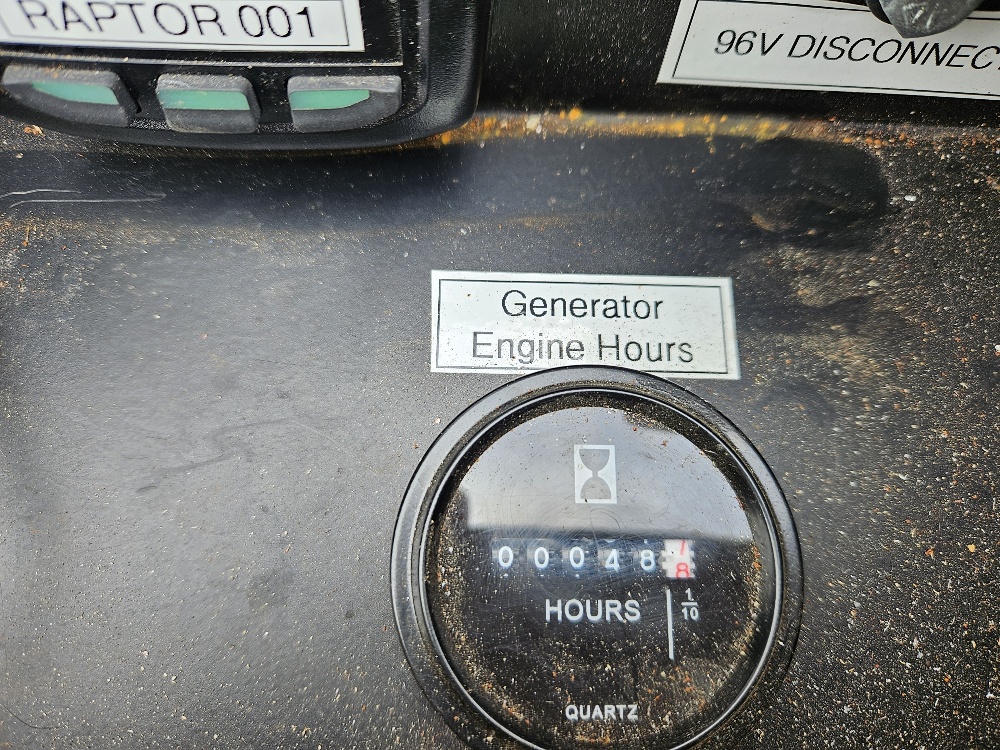

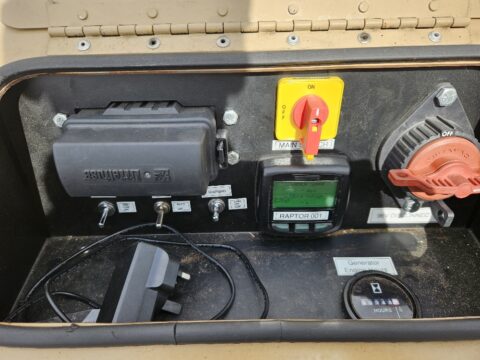

ENGINE HOURS 48

1 UNIT IN STOCK

PRICE ON APPLICATION
